LED Neon Flex

SF16-VB

  • 1660900164769

  • 1660899378912

  • 1660899040165

  • 1660900791918

Technical Parameters


ElectricalInput Voltage24V Constant Voltage (CV), 24V Constant Current (CC)
Power Consumption6W~15.5W/m
OpticalLED Type & BrandSMD 2835, Epistar
CRI>80, (R90, R95 customizable)
Beam Angle120° (IES)

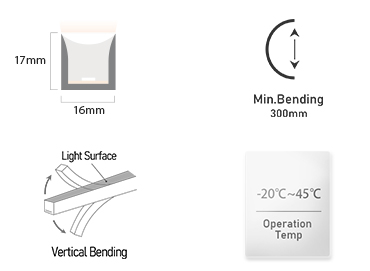

PhysicalMin. Bending DiameterΦ300mm
TemperatureOperation Temperature-20℃~45℃
Max. Mounting Surface Temp.60℃
DurabilityWarranty3 Years Warranty
Lumen Maintenance70,000 Hours L70 @ 25℃,  50,000 Hours L70 @ 50℃
Max. IP RatingIP68, underwater ≤ 2m


Models List


Model No.LED ColorVoltageWorking
   Mode
Power/mLED Qty/mMin. Cutting LengthMax. Run Length
/Single End
SF16-VB-B-CV24-84-R80-6WWhite/Green/Blue24V DCCV6W108pcs55.5mm20m
SF16-VB-B-CV24-72-R80-7.8WRed24V DCCV7.8W108pcs83.3mm14m
SF16-VB-B-CV24-84-R80-9WWhite/Green/Blue24V DCCV9W108pcs55.5mm12m
SF16-VB-B-CV24-84-R80-13WWhite/Green/Blue24V DCCV13W108pcs55.5mm10m
SF16-VB-B-CV24-120-R80-13WWhite/Green/Blue24V DCCV13W120pcs50mm9m











SF16-VB-B-CC24-84-R80-6WWhite/Green/Blue24V DCCC6W108pcs55.5mm25m
SF16-VB-B-CC24-72-R80-7.8WRed24V DCCC7.8W108pcs83.3mm18m
SF16-VB-B-CC24-84-R80-9WWhite/Green/Blue24V DCCC9W108pcs55.5mm17m
SF16-VB-B-CC24-84-R80-12WWhite/Green/Blue24V DCCC12W108pcs55.5mm15m
SF16-VB-B-CC24-84-R80-15.5WWhite/Green/Blue24V DCCC15.5W108pcs55.5mm13m


Optical Parameters


MODEL:Lumen/m (±5%)
SF16-VB-B Series (R80 )
CCT /ColorTolerance6W/m7.8W/m9W/m12W/m15.5W/m
2200KSF16-VB-B2238K ±102K445lm/630lm810lm890lm
2700KSF16-VB-B2725K ±145K445lm/630lm810lm890lm
3000KSF16-VB-B3045K ±175K490lm/655lm860lm970lm
3500KSF16-VB-B3465K ±245K540lm/700lm940lm1040lm
4000KSF16-VB-B3985K ±275K540lm/700lm940lm1040lm
5000KSF16-VB-B5029K ±283K540lm/700lm940lm1040lm
5700KSF16-VB-B5667K ±355K590lm/760lm995lm1070lm
6500KSF16-VB-B6532K ±510K590lm/760lm995lm1070lm
GreenSF16-VB-B520-530nm315lm/445lm570lm655lm
BlueSF16-VB-B465-475nm65lm/88lm105lm145lm
RedSF16-VB-B620-630nm/315lm///
Notes: More colors available - yellow / lemon yellow / orange / amber / pink / purple / turquoise.

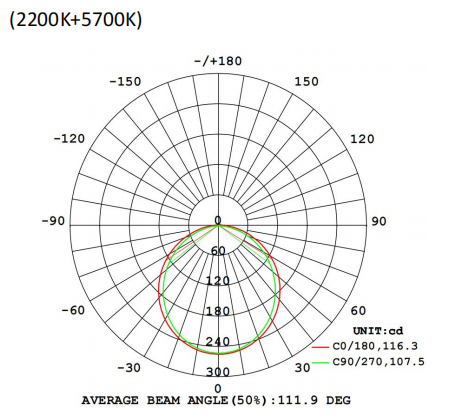

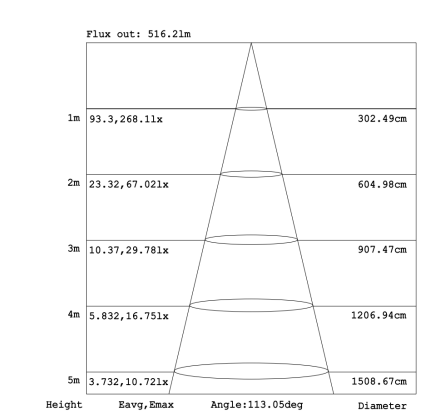

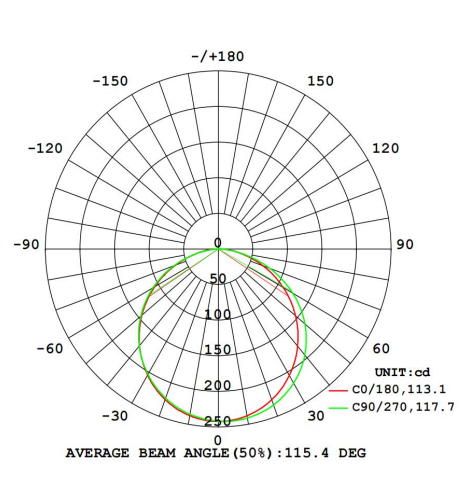

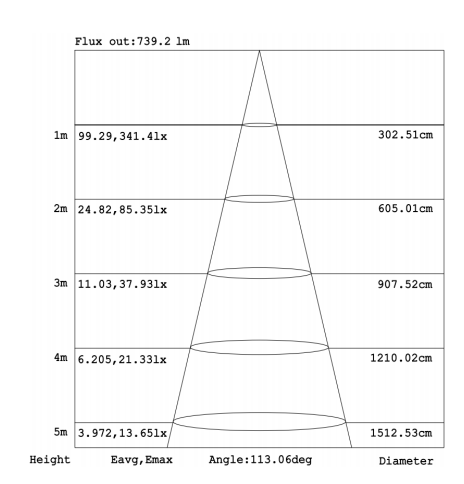

Illuminance Distribution

       SF16-VB                      SF16-VB

Technical Specifications


ElectricalInput Voltage24V, Constant Voltage (CV)
Power Consumption15W/m
Max. Run LengthSingle End -8m; Double Ends -16m
OpticalLED Type & BrandSMD 3030, Epistar
LED Color2200K+5700K
CRI>80, (R90, R95 customizable)
Lumen/m480lm+580lm
Beam Angle120° (IES)
PhysicalLED Qty108 LEDs/m
Min. Cutting Length55.5mm
Min. Bending DiameterΦ300mm
TemperatureOperation Temperature-20℃~45℃
Max. Mounting Surface Temp.60℃
DurabilityWarranty3 Years Warranty
Lumen Maintenance70,000 Hours L70 @ 25℃,  50,000 Hours L70 @ 50℃
Max. IP RatingIP68, underwater ≤ 2m

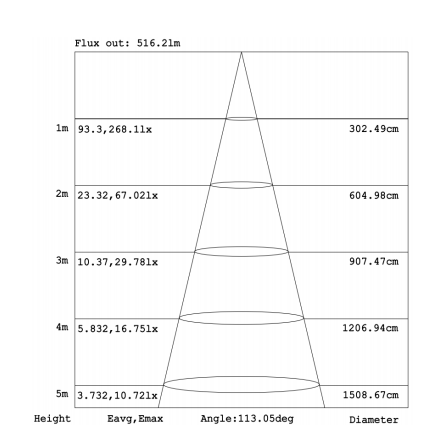

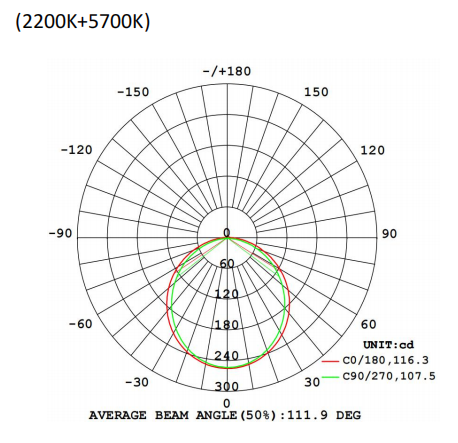

Illuminance Distribution


SF16-VB                 SF16-VB

Technical Specifications


 Electrical    Input Voltage24V Constant Voltage (CV)
    Power Consumption15W/m
    Max. Run Length Single End -7m; Double Ends -14m
 Optical     LED Type & BrandSMD 5050, Epistar
    LED Color RGB
    Lumen/m310lm±5%
    Beam Angle120° (IES)
 Physical     LED Qty84 LEDs/m
    Min. Cutting Length83.3mm
    Min. Bending DiameterΦ300mm
 Temperature    Operation Temperature-20℃~45℃
    Max. Mounting Surface Temp.60℃
 Durability    Warranty 3 Years Warranty
    Lumen Maintenance70,000 Hours L70 @ 25℃,  50,000 Hours L70 @ 50℃
    Max. IP RatingIP68, underwater ≤ 2m


Technical Parameters


ElectricalInput Voltage24V Constant Voltage (CV)
Power Consumption19.5W/m
OpticalLED Type & BrandSMD 5050, Epistar
LED ColorRGBW
Beam Angle120° (IES)
PhysicalLED Qty84 LEDs/m
Min. Cutting Length71.4mm
Min. Bending DiameterΦ300mm
TemperatureOperation Temperature-20℃~45℃
Max. Mounting Surface Temp.60℃
DurabilityWarranty3 Years Warranty
Lumen Maintenance70,000 Hours L70 @ 25℃, 50,000 Hours L70 @ 50℃
Max. IP RatingIP68, underwater≤2m


Models List


Model No.LED ColorVoltageWorking
Mode
Power/mLED Qty/mLumen/mMax. Run Length
/Single End
SF16-VB-A-CV24-RGBW(27K)-84-19.5WRGBW(2700K)24V DCCV19.5W84pcs530lm±5%5m
SF16-VB-A-CV24-RGBW(30K)-84-19.5WRGBW(3000K)24V DCCV19.5W84pcs530lm±5%5m
SF16-VB-A-CV24-RGBW(40K)-84-19.5WRGBW(4000K)24V DCCV19.5W84pcs530lm±5%5m




SF16-VB SPI Pixel - RGB/RGBW


Model No.VoltageLED ColorIC ModelPower/mLEDs/mLumen/mPixel /mMin. Cutting
Length
Max. Run Length
/Single End
SF16-VB-S-SPI-CC24-RGB-84-17W24V DCRGBUCS8903B17W/m84pcs365lm±5%12 Pixels83.3mm7m
SF16-VB-S-SPI-CC24-RGBW(27K)-84-22W24V DCRGBW(2700K)UCS8904B22W/m84pcs660lm±5%12 Pixels83.3mm5m
SF16-VB-S-SPI-CC24-RGBW(30K)-84-22W24V DCRGBW(3000K)UCS8904B22W/m84pcs660lm±5%12 Pixels83.3mm5m
SF16-VB-S-SPI-CC24-RGBW(40K)-84-22W24V DCRGBW(4000K)UCS8904B22W/m84pcs660lm±5%12 Pixels83.3mm5m


SF16-VB SPI Pixel - Single Color


Model No.VoltageLED ColorIC ModelPower/mLEDs/mLumen/mPixel /mMin. Cutting
Length
Max. Run Length
/Single End
SF16-VB-S-SPI-CC24-27K-84-17W24V DC2700KUCS8903B17W/m84pcs600lm±5%12 Pixels83.3mm7m
SF16-VB-S-SPI-CC24-30K-84-17W24V DC3000KUCS8903B17W/m84pcs635lm±5%12 Pixels83.3mm7m
SF16-VB-S-SPI-CC24-40K-84-17W24V DC4000KUCS8903B17W/m84pcs695lm±5%12 Pixels83.3mm7m
SF16-VB-S-SPI-CC24-50K-84-17W24V DC5000KUCS8903B17W/m84pcs695lm±5%12 Pixels83.3mm7m
SF16-VB-S-SPI-CC24-57K-84-17W24V DC5700KUCS8903B17W/m84pcs730lm±5%12 Pixels83.3mm7m
SF16-VB-S-SPI-CC24-R-84-17W24V DCRedUCS8903B17W/m84pcs325lm±5%12 Pixels83.3mm7m
SF16-VB-S-SPI-CC24-G-84-17W24V DCGreenUCS8903B17W/m84pcs420lm±5%12 Pixels83.3mm7m
SF16-VB-S-SPI-CC24-B-84-17W24V DCBlueUCS8903B17W/m84pcs75lm±5%12 Pixels83.3mm7m


SF16-VB DMX Pixel - RGB/RGBW


Model No.VoltageLED ColorIC ModelPower/mLEDs/mLumen/mPixel /mMin. Cutting
Length
Max. Run Length
/Single End
SF16-VB-S-DMX-CC24-RGB-84-17W24V DCRGBUCS512B317W/m84pcs365lm±5%12 Pixels83.3mm7m
SF16-VB-S-DMX-CC24-RGBW(27K)-84-22W24V DCRGBW(2700K)UCS512B422W/m84pcs660lm±5%12 Pixels83.3mm5m
SF16-VB-S-DMX-CC24-RGBW(30K)-84-22W24V DCRGBW(3000K)UCS512B422W/m84pcs660lm±5%12 Pixels83.3mm5m
SF16-VB-S-DMX-CC24-RGBW(40K)-84-22W24V DCRGBW(4000K)UCS512B422W/m8p4cs660lm±5%12 Pixels83.3mm5m


SF16-VB DMX Pixel - Single Color/DW


Model No.VoltageLED ColorIC ModelPower/mLEDs/mLumen/mPixel /mMin. Cutting
Length
Max. Run Length
/Single End
SF16-VB-S-DMX-CC24-27K-84-17W24V DC2700KUCS512B317W/m84pcs600lm±5%12 Pixels83.3mm7m
SF16-VB-S-DMX-CC24-30K-84-17W24V DC3000KUCS512B317W/m84pcs635lm±5%12 Pixels83.3mm7m
SF16-VB-S-DMX-CC24-40K-84-17W24V DC4000KUCS512B317W/m84pcs695lm±5%12 Pixels83.3mm7m
SF16-VB-S-DMX-CC24-50K-84-17W24V DC5000KUCS512B317W/m84pcs695lm±5%12 Pixels83.3mm7m
SF16-VB-S-DMX-CC24-57K-84-17W24V DC5700KUCS512B317W/m84pcs730lm±5%12 Pixels83.3mm7m
SF16-VB-S-DMX-CC24-R-84-17W24V DCRedUCS512B317W/m84pcs325lm±5%12 Pixels83.3mm7m
SF16-VB-S-DMX-CC24-G-84-17W24V DCGreenUCS512B317W/m84pcs420lm±5%12 Pixels83.3mm7m
SF16-VB-S-DMX-CC24-B-84-17W24V DCBlueUCS512B317W/m84pcs75lm±5%12 Pixels83.3mm7m
SF16-VB-S-DMX-CC24-DW-120-17W24V DCDual WhiteUCS512B417W/m84pcs660lm±5%12 Pixels100mm7m



  • 1660900164769

  • 1660899378912

  • 1660899040165

  • 1660900791918

Technical Parameters


ElectricalInput Voltage24V Constant Voltage (CV), 24V Constant Current (CC)
Power Consumption6W~15.5W/m
OpticalLED Type & BrandSMD 2835, Epistar
CRI>80, (R90, R95 customizable)
Beam Angle120° (IES)
PhysicalMin. Bending DiameterΦ300mm
TemperatureOperation Temperature-40℃~55℃
Max. Mounting Surface Temp.85℃
DurabilityWarranty5 Years Warranty
Max. IP RatingIP67
Lumen Maintenance70,000 Hours L70 @ 25℃,  50,000 Hours L70 @ 50℃


Models List


Model No.LED ColorVoltageWorking
   Mode
Power/mLED Qty/mMin. Cutting
    Length
Max. Run Length
/Single End
SFS16-VB-B-CV24-84-R80-6WWhite/Green/Blue24V DCCV6W108pcs55.5mm20m
SFS16-VB-B-CV24-72-R80-7.8WRed24V DCCV7.8W108pcs83.3mm14m
SFS16-VB-B-CV24-84-R80-9WWhite/Green/Blue24V DCCV9W108pcs55.5mm12m
SFS16-VB-B-CV24-84-R80-13WWhite/Green/Blue24V DCCV13W108pcs55.5mm10m
SFS16-VB-B-CV24-120-R80-13WWhite/Green/Blue24V DCCV13W120pcs50mm9m
SFS16-VB-B-CC24-84-R80-6WWhite/Green/Blue24V DCCC6W108pcs55.5mm25m
SFS16-VB-B-CC24-72-R80-7.8WRed24V DCCC7.8W108pcs83.3mm18m
SFS16-VB-B-CC24-84-R80-9WWhite/Green/Blue24V DCCC9W108pcs55.5mm17m
SFS16-VB-B-CC24-84-R80-12WWhite/Green/Blue24V DCCC12W108pcs55.5mm15m
SFS16-VB-B-CC24-84-R80-15.5WWhite/Green/Blue24V DCCC15.5W108pcs55.5mm13m


Optical Parameters


MODEL:Lumen/m (±5%)
SFS16-VB-B Series (R80 )
CCT /ColorTolerance6W/m7.8W/m9W/m12W/m15.5W/m
2200KSFS16-VB-B2238K ±102K500lm/710lm915lm1000lm
2700KSFS16-VB-B2725K ±145K500lm/710lm915lm1000lm
3000KSFS16-VB-B3045K ±175K550lm/740lm970lm1100lm
3500KSFS16-VB-B3465K ±245K610lm/790lm1060lm1150lm
4000KSFS16-VB-B3985K ±275K610lm/790lm1060lm1150lm
5000KSFS16-VB-B5029K ±283K610lm/790lm1060lm1150lm
5700KSFS16-VB-B5667K ±355K665lm/855lm1120lm1200lm
6500KSFS16-VB-B6532K ±510K665lm/855lm1120lm1200lm
GreenSFS16-VB-B520-530nm355lm/500lm640lm740lm
BlueSFS16-VB-B465-475nm72lm/98lm115lm160lm
RedSFS16-VB-B620-630nm/355lm///
Notes: More colors available - yellow / lemon yellow / orange / amber / pink / purple / turquoise.

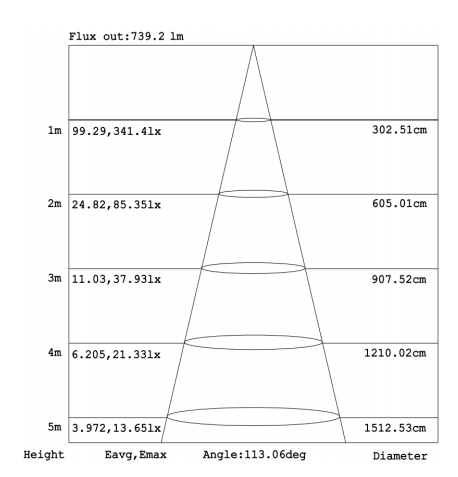

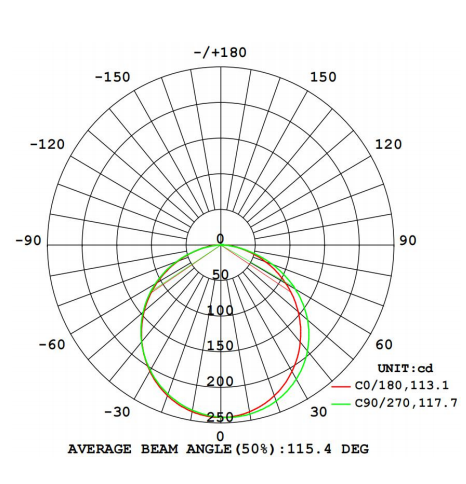

Illuminance Distribution

       SF16-VB                      SF16-VB

Technical Specifications


ElectricalInput Voltage24V, Constant Voltage (CV)
Power Consumption15W/m
Max. Run LengthSingle End -8m; Double Ends -16m
OpticalLED Type & BrandSMD 3030, Epistar
LED Color2200K+5700K
CRI>80, (R90, R95 customizable)
Lumen/m540lm+655lm
Beam Angle120° (IES)
PhysicalLED Qty108 LEDs/m
Min. Cutting Length55.5mm
Min. Bending DiameterΦ300mm
TemperatureOperation Temperature-40℃~55℃
Max. Mounting Surface Temp.85℃
DurabilityWarranty5 Years Warranty
Max. IP RatingIP67
Lumen Maintenance70,000 Hours L70 @ 25℃, 50,000 Hours L70 @ 50℃


Illuminance Distribution


SF16-VB                    SF16-VB

Technical Specifications


ElectricalInput Voltage24V, Constant Voltage (CV)
Power Consumption15W/m
Max. Run LengthSingle End -7m; Double Ends -14m
OpticalLED Type & BrandSMD 5050, Epistar
LED ColorRGB
Lumen/m350lm±5%
Beam Angle120° (IES)
PhysicalLED Qty84 LEDs/m
Min. Cutting Length83.3mm
Min. Bending DiameterΦ300mm
TemperatureOperation Temperature-40℃~55℃
Max. Mounting Surface Temp.85℃
DurabilityWarranty5 Years Warranty
Max. IP RatingIP67
Lumen Maintenance70,000 Hours L70 @ 25℃, 50,000 Hours L70 @ 50℃



Technical Parameters


ElectricalInput Voltage24V Constant Voltage (CV)
Power Consumption19.5W/m
OpticalLED Type & BrandSMD 5050, Epistar
LED ColorRGBW
Beam Angle120° (IES)
PhysicalLED Qty84 LEDs/m
Min. Cutting Length71.4mm
Min. Bending DiameterΦ300mm
TemperatureOperation Temperature-40℃~55℃
Max. Mounting Surface Temp.85℃
DurabilityWarranty5 Years Warranty
Max. IP RatingIP67
Lumen Maintenance70,000 Hours L70 @ 25℃, 50,000 Hours L70 @ 50℃


Models List


Model No.LED ColorVoltageWorking
Mode
Power/mLED Qty/mLumen/mMax. Run Length
/Single End
SFS16-VB-A-CV24-RGBW(27K)-84-19.5WRGBW(2700K)24V DCCV19.5W84pcs595lm±5%5m
SFS16-VB-A-CV24-RGBW(30K)-84-19.5WRGBW(3000K)24V DCCV19.5W84pcs595lm±5%5m
SFS16-VB-A-CV24-RGBW(40K)-84-19.5WRGBW(4000K)24V DCCV19.5W84pcs595lm±5%5m



SFS16-VB SPI Pixel - RGB/RGBW


Model No.VoltageLED ColorIC ModelPower/mLEDs/mLumen/mPixel /mMin. Cutting
Length
Max. Run Length
/Single End
SFS16-VB-S-SPI-CC24-RGB-84-17W24V DCRGBUCS8903B17W/m84pcs410lm±5%12 Pixels83.3mm7m
SFS16-VB-S-SPI-CC24-RGBW(27K)-84-22W24V DCRGBW(2700K)UCS8904B22W/m84pcs745lm±5%12 Pixels83.3mm5m
SFS16-VB-S-SPI-CC24-RGBW(30K)-84-22W24V DCRGBW(3000K)UCS8904B22W/m84pcs745lm±5%12 Pixels83.3mm5m
SFS16-VB-S-SPI-CC24-RGBW(40K)-84-22W24V DCRGBW(4000K)UCS8904B22W/m84pcs745lm±5%12 Pixels83.3mm5m


SFS16-VB SPI Pixel - Single Color


Model No.VoltageLED ColorIC ModelPower/mLEDs/mLumen/mPixel /mMin. Cutting
Length
Max. Run Length
/Single End
SFS16-VB-S-SPI-CC24-27K-84-17W24V DC2700KUCS8903B17W/m84pcs675lm±5%12 Pixels83.3mm7m
SFS16-VB-S-SPI-CC24-30K-84-17W24V DC3000KUCS8903B17W/m84pcs715lm±5%12 Pixels83.3mm7m
SFS16-VB-S-SPI-CC24-40K-84-17W24V DC4000KUCS8903B17W/m84pcs785lm±5%12 Pixels83.3mm7m
SFS16-VB-S-SPI-CC24-50K-84-17W24V DC5000KUCS8903B17W/m84pcs785lm±5%12 Pixels83.3mm7m
SFS16-VB-S-SPI-CC24-57K-84-17W24V DC5700KUCS8903B17W/m84pcs820lm±5%12 Pixels83.3mm7m
SFS16-VB-S-SPI-CC24-R-84-17W24V DCRedUCS8903B17W/m84pcs365lm±5%12 Pixels83.3mm7m
SFS16-VB-S-SPI-CC24-G-84-17W24V DCGreenUCS8903B17W/m84pcs470lm±5%12 Pixels83.3mm7m
SFS16-VB-S-SPI-CC24-B-84-17W24V DCBlueUCS8903B17W/m84pcs84lm±5%12 Pixels83.3mm7m


SFS16-VB DMX Pixel - RGB/RGBW


Model No.VoltageLED ColorIC ModelPower/mLEDs/mLumen/mPixel /mMin. Cutting
Length
Max. Run Length
/Single End
SFS16-VB-S-DMX-CC24-RGB-84-17W24V DCRGBUCS512B317W/m84pcs410lm±5%12 Pixels83.3mm7m
SFS16-VB-S-DMX-CC24-RGBW(27K)-84-22W24V DCRGBW(2700K)UCS512B422W/m84pcs745lm±5%12 Pixels83.3mm5m
SFS16-VB-S-DMX-CC24-RGBW(30K)-84-22W24V DCRGBW(3000K)UCS512B422W/m84pcs745lm±5%12 Pixels83.3mm5m
SFS16-VB-S-DMX-CC24-RGBW(40K)-84-22W24V DCRGBW(4000K)UCS512B422W/m8p4cs745lm±5%12 Pixels83.3mm5m


SFS16-VB DMX Pixel - Single Color/DW


Model No.VoltageLED ColorIC ModelPower/mLEDs/mLumen/mPixel /mMin. Cutting
Length
Max. Run Length
/Single End
SFS16-VB-S-DMX-CC24-27K-84-17W24V DC2700KUCS512B317W/m84pcs675lm±5%12 Pixels83.3mm7m
SFS16-VB-S-DMX-CC24-30K-84-17W24V DC3000KUCS512B317W/m84pcs715lm±5%12 Pixels83.3mm7m
SFS16-VB-S-DMX-CC24-40K-84-17W24V DC4000KUCS512B317W/m84pcs785lm±5%12 Pixels83.3mm7m
SFS16-VB-S-DMX-CC24-50K-84-17W24V DC5000KUCS512B317W/m84pcs785lm±5%12 Pixels83.3mm7m
SFS16-VB-S-DMX-CC24-57K-84-17W24V DC5700KUCS512B317W/m84pcs820lm±5%12 Pixels83.3mm7m
SFS16-VB-S-DMX-CC24-R-84-17W24V DCRedUCS512B317W/m84pcs365lm±5%12 Pixels83.3mm7m
SFS16-VB-S-DMX-CC24-G-84-17W24V DCGreenUCS512B317W/m84pcs470lm±5%12 Pixels83.3mm7m
SFS16-VB-S-DMX-CC24-B-84-17W24V DCBlueUCS512B317W/m84pcs84lm±5%12 Pixels83.3mm7m
SFS16-VB-S-DMX-CC24-DW-120-17W24V DCDual WhiteUCS512B417W/m84pcs745lm±5%12 Pixels100mm7m

SFS16-VB-S-DMX RGB(W).pdf

Copyright © Senbe Lighting Co., Ltd. All Rights Reserved | Sitemap
