Technical Parameters
| Electrical | Input Voltage | 24V Constant Voltage (CV), 24V Constant Current (CC) | ||||||||
| Power Consumption | 6W~15.5W/m | |||||||||
| Optical | LED Type & Brand | SMD 2835, Epistar | ||||||||
| CRI | >80, (R90, R95 customizable) | |||||||||
| Beam Angle | 120° (IES) | |||||||||

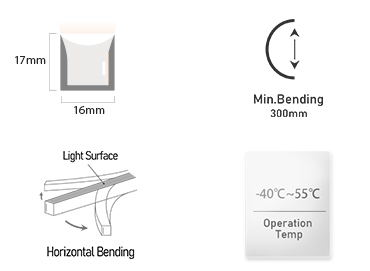

| Physical | Min. Bending Diameter | Φ300mm | ||||||||
| Temperature | Operation Temperature | -40℃~55℃ | ||||||||
| Max. Mounting Surface Temp. | 85℃ | |||||||||
| Durability | Warranty | 5 Years Warranty | ||||||||
| Max. IP Rating | IP67 | |||||||||
| Lumen Maintenance | 70,000 Hours L70 @ 25℃,50,000 Hours L70 @ 50℃ | |||||||||
Models List
| Model No. | LED Color | Voltage | Working Mode | Power/m | LED Qty/m | Min. Cutting Length | Max. Run Length /Single End | |||
| SFS16-HB-B-CV24-120-R80-6W | White/Green/Blue | 24V DC | CV | 6W | 120pcs | 50mm | 16m | |||
| SFS16-HB-B-CV24-120-R80-7.8W | Red | 24V DC | CV | 7.8W | 120pcs | 50mm | 14m | |||
| SFS16-HB-B-CV24-120-R80-9W | White/Green/Blue | 24V DC | CV | 9W | 120pcs | 50mm | 12m | |||
| SFS16-HB-B-CV24-120-R80-13W | White/Green/Blue | 24V DC | CV | 13W | 120pcs | 50mm | 10m | |||
| SFS16-HB-B-CC24-108-R80-6W | White/Green/Blue | 24V DC | CC | 6W | 108pcs | 55.5mm | 20m | |||
| SFS16-HB-B-CC24-108-R80-7.8W | Red | 24V DC | CC | 7.8W | 108pcs | 55.5mm | 17m | |||
| SFS16-HB-B-CC24-108-R80-9W | White/Green/Blue | 24V DC | CC | 9W | 108pcs | 55.5mm | 15m | |||
| SFS16-HB-B-CC24-108-R80-12W | White/Green/Blue | 24V DC | CC | 12W | 108pcs | 55.5mm | 14m | |||
| SFS16-HB-B-CC24-108-R80-15.5W | White/Green/Blue | 24V DC | CC | 15.5W | 108pcs | 55.5mm | 12m | |||
Optical Parameters
| MODEL: | Lumen/m (±5%) | |||||||||
| SFS16-HB-B Series (R80 ) | ||||||||||
| CCT /Color | Tolerance | 6W/m | 7.8W/m | 9W/m | 12W/m | 15.5W/m | ||||
| 2200K |  | 2238K ±102K | 275lm | / | 380lm | 495lm | 545lm | |||
| 2700K |  | 2725K ±145K | 275lm | / | 380lm | 495lm | 545lm | |||
| 3000K |  | 3045K ±175K | 415lm | / | 405lm | 530lm | 595lm | |||
| 3500K |  | 3465K ±245K | 340lm | / | 425lm | 580lm | 640lm | |||
| 4000K |  | 3985K ±275K | 340lm | / | 425lm | 580lm | 640lm | |||
| 5000K |  | 5029K ±283K | 340lm | / | 425lm | 580lm | 640lm | |||
| 5700K |  | 5667K ±355K | 360lm | / | 465lm | 610lm | 655lm | |||
| 6500K |  | 6532K ±510K | 360lm | / | 465lm | 610lm | 655lm | |||
| Green |  | 520-530nm | 190lm | / | 275lm | 350lm | 400lm | |||
| Blue |  | 465-475nm | 39lm | / | 54lm | 63lm | 88lm | |||
| Red |  | 620-630nm | / | 190lm | / | / | / | |||
| Notes:More colors available - yellow / lemon yellow / orange / amber / pink / purple / turquoise. | ||||||||||

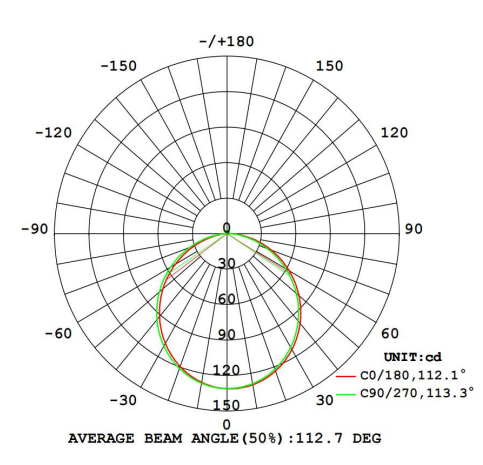

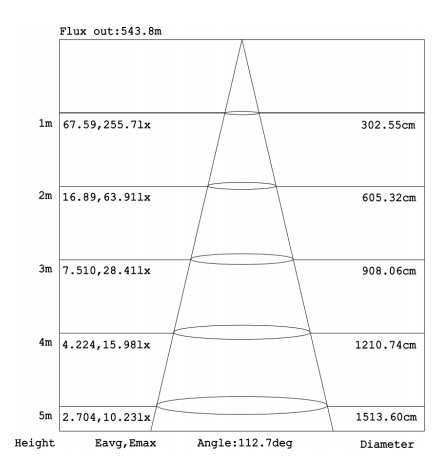

Illuminance Distribution
Download
Technical Parameters
| Electrical | Input Voltage | 24V Constant Voltage (CV) | ||||||||
| Power Consumption | 19.5W/m | |||||||||
| Optical | LED Type & Brand | SMD 5050, Epistar | ||||||||
| LED Color | RGBW | |||||||||
| Beam Angle | 120° (IES) | |||||||||
| Physical | LED Qty | 84 LEDs/m | ||||||||
| Min. Cutting Length | 71.4mm | |||||||||
| Min. Bending Diameter | Φ300mm | |||||||||
| Temperature | Operation Temperature | -40℃~55℃ | ||||||||
| Max. Mounting Surface Temp. | 85℃ | |||||||||
| Durability | Warranty | 5 Years Warranty | ||||||||
| Max. IP Rating | IP67 | |||||||||
| Lumen Maintenance | 70,000 Hours L70 @ 25℃, 50,000 Hours L70 @ 50℃ | |||||||||
Models List
| Model No. | LED Color | Voltage | Working Mode | Power/m | LED Qty/m | Lumen/m | Max. Run Length /Single End | |||
| SFS16-HB-A-CV24-RGBW(27K)-84-17W | RGBW(2700K) | 24V DC | CV | 17W | 84pcs | 340lm±5% | 7m | |||
| SFS16-HB-A-CV24-RGBW(30K)-84-17W | RGBW(3000K) | 24V DC | CV | 17W | 84pcs | 340lm±5% | 7m | |||
| SFS16-HB-A-CV24-RGBW(40K)-84-17W | RGBW(4000K) | 24V DC | CV | 17W | 84pcs | 340lm±5% | 7m | |||
Download
SFS16-HB SPI Pixel - RGB/RGBW
| Model No. | Voltage | LED Color | IC Model | Power/m | LEDs/m | Lumen/m | Pixel /m | Min. Cutting Length | Max. Run Length /Single End | ||||
| SFS16-HB-S-SPI-CC24-RGBW(27K)-84-22W | 24V DC | RGBW(2700K) | UCS8904B | 22W/m | 84pcs | 455lm±5% | 12 Pixels | 83.3mm | 5m | ||||
| SFS16-HB-S-SPI-CC24-RGBW(30K)-84-22W | 24V DC | RGBW(3000K) | UCS8904B | 22W/m | 84pcs | 455lm±5% | 12 Pixels | 83.3mm | 5m | ||||
| SFS16-HB-S-SPI-CC24-RGBW(40K)-84-22W | 24V DC | RGBW(4000K) | UCS8904B | 22W/m | 84pcs | 455lm±5% | 12 Pixels | 83.3mm | 5m | ||||
SFS16-HB DMX Pixel - RGB/RGBW
| Model No. | Voltage | LED Color | IC Model | Power/m | LEDs/m | Lumen/m | Pixel /m | Min. Cutting Length | Max. Run Length /Single End | ||||
| SFS16-HB-S-DMX-CC24-RGBW(27K)-84-22W | 24V DC | RGBW(2700K) | UCS512B4 | 22W/m | 84pcs | 455lm±5% | 12 Pixels | 83.3mm | 5m | ||||
| SFS16-HB-S-DMX-CC24-RGBW(30K)-84-22W | 24V DC | RGBW(3000K) | UCS512B4 | 22W/m | 84pcs | 455lm±5% | 12 Pixels | 83.3mm | 5m | ||||
| SFS16-HB-S-DMX-CC24-RGBW(40K)-84-22W | 24V DC | RGBW(4000K) | UCS512B4 | 22W/m | 8p4cs | 455lm±5% | 12 Pixels | 83.3mm | 5m | ||||
