Technical Parameters
| Electrical | Input Voltage | 24V Constant Voltage (CV), 24V Constant Current (CC) | ||||||||
| Power Consumption | 6W~12W/m | |||||||||
| Optical | LED Type & Brand | SMD 2835, Epistar | ||||||||
| CRI | >80 (R90, R95 customizable) | |||||||||
| Beam Angle | 120° (IES) | |||||||||

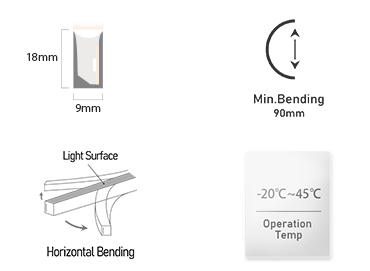

| Physical | Min. Bending Diameter | Φ90mm | ||||||||
| Temperature | Operation Temperature | -20℃~45℃ | ||||||||
| Max. Mounting Surface Temp. | 60℃ | |||||||||
| Durability | Warranty | 3 Years Warranty | ||||||||
| Lumen Maintenance | 70,000 Hours L70 @ 25℃, 50,000 Hours L70 @ 50℃ | |||||||||
| Max. IP Rating | IP68, underwater ≤ 2m | |||||||||
Models List
| Model No. | LED Color | Voltage | Working Mode | Power/m | LED Qty/m | Min. Cutting Length | Max. Run Length /Single End | |||
| SF09-B-CV24-72-R80-6W | White/Green/Blue | 24V DC | CV | 6W | 72pcs | 83.3mm | 20m | |||
| SF09-B-CV24-72-R80-7.8W | Red | 24V DC | CV | 7.8W | 72pcs | 125mm | 16m | |||
| SF09-B-CV24-72-R80-10W | White/Green/Blue | 24V DC | CV | 10W | 72pcs | 83.3mm | 13m | |||
| SF09-B-CC24-84-R80-6W | White/Green/Blue | 24V DC | CC | 6W | 84pcs | 71.4mm | 30m | |||
| SF09-B-CC24-72-R80-7.8W | Red | 24V DC | CC | 7.8W | 72pcs | 125mm | 22m | |||
| SF09-B-CC24-84-R80-12W | White/Green/Blue | 24V DC | CC | 12W | 84pcs | 71.4mm | 18m | |||
Optical Parameters
| MODEL: | Lumen/m (±5%) | ||||||||
| SF09-B Series (R80 ) | |||||||||
| CCT /Color | Tolerance | 6W/m | 7.8W/m | 10W/m | 12W/m | ||||
 2200K | 2238K ±102K | 170lm | / | 240lm | 310lm | ||||
| 2700K | 2725K ±145K | 170lm | / | 240lm | 310lm | ||||
| 3000K | 3045K ±175K | 190lm | / | 250lm | 330lm | ||||
| 3500K | 3465K ±245K | 210lm | / | 270lm | 360lm | ||||
| 4000K | 3985K ±275K | 210lm | / | 270lm | 360lm | ||||
| 5000K | 5029K ±283K | 210lm | / | 270lm | 360lm | ||||
| 5700K | 5667K ±355K | 230lm | / | 290lm | 380lm | ||||
| 6500K | 6532K ±510K | 230lm | / | 290lm | 380lm | ||||
| Green | 520-530nm | 120lm | / | 170lm | 220lm | ||||
| Blue | 465-475nm | 25lm | / | 34lm | 40lm | ||||
| Red | 620-630nm | / | 120lm | / | / | ||||
| Notes: More colors available - yellow / lemon yellow / orange / amber / pink / purple / turquoise. | |||||||||

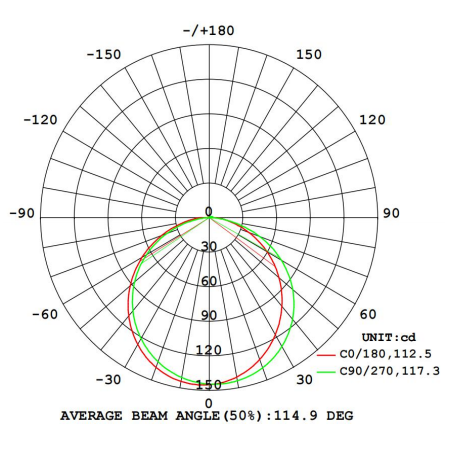

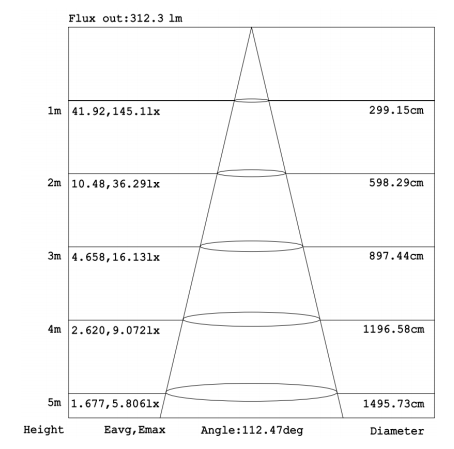

Illuminance Distribution
Download
Technical Parameters
| Electrical | Input Voltage | 24V Constant Voltage (CV), 24V Constant Current (CC) | ||||||||
| Power Consumption | 6W~12W/m | |||||||||
| Optical | LED Type & Brand | SMD 2835, Epistar | ||||||||
| CRI | >80 (R90, R95 customizable) | |||||||||
| Beam Angle | 120° (IES) | |||||||||

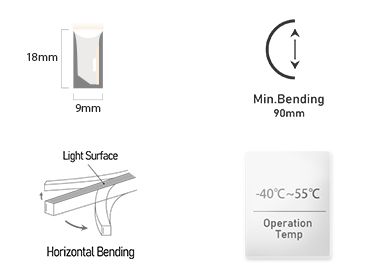

| Physical | Min. Bending Diameter | Φ90mm | ||||||||
| Temperature | Operation Temperature | -40℃~55℃ | ||||||||
| Max. Mounting Surface Temp. | 85℃ | |||||||||
| Durability | Warranty | 5 Years Warranty | ||||||||
| Max. IP Rating | IP67 | |||||||||
| Lumen Maintenance | 70,000 Hours L70 @ 25℃, 50,000 Hours L70 @ 50℃ | |||||||||
Models List
| Model No. | LED Color | Voltage | Working Mode | Power/m | LED Qty/m | Min. Cutting Length | Max. Run Length /Single End | |||
| SFS09-B-CV24-72-R80-6W | White/Green/Blue | 24V DC | CV | 6W | 72pcs | 83.3mm | 20m | |||
| SFS09-B-CV24-72-R80-7.8W | Red | 24V DC | CV | 7.8W | 72pcs | 125mm | 16m | |||
| SFS09-B-CV24-72-R80-10W | White/Green/Blue | 24V DC | CV | 10W | 72pcs | 83.3mm | 13m | |||
| SFS09-B-CC24-84-R80-6W | White/Green/Blue | 24V DC | CC | 6W | 84pcs | 71.4mm | 30m | |||
| SFS09-B-CC24-72-R80-7.8W | Red | 24V DC | CC | 7.8W | 72pcs | 125mm | 22m | |||
| SFS09-B-CC24-84-R80-12W | White/Green/Blue | 24V DC | CC | 12W | 84pcs | 71.4mm | 18m | |||
Optical Parameters
| MODEL: | Lumen/m (±5%) | ||||||||
| SFS09-B Series (R80 ) | |||||||||
| CCT /Color | Tolerance | 6W/m | 7.8W/m | 10W/m | 12W/m | ||||
| 2200K |  | 2238K ±102K | 190lm | / | 270lm | 350lm | |||
| 2700K |  | 2725K ±145K | 190lm | / | 270lm | 350lm | |||
| 3000K |  | 3045K ±175K | 210lm | / | 280lm | 370lm | |||
| 3500K |  | 3465K ±245K | 235lm | / | 305lm | 400lm | |||
| 4000K |  | 3985K ±275K | 235lm | / | 305lm | 400lm | |||
| 5000K |  | 5029K ±283K | 235lm | / | 305lm | 400lm | |||
| 5700K |  | 5667K ±355K | 255lm | / | 325lm | 425lm | |||
| 6500K |  | 6532K ±510K | 255lm | / | 325lm | 425lm | |||
| Green |  | 520-530nm | 135lm | / | 190lm | 245lm | |||
| Blue |  | 465-475nm | 28lm | / | 38lm | 45lm | |||
| Red |  | 620-630nm | / | 135lm | / | / | |||
| Notes: More colors available - yellow / lemon yellow / orange / amber / pink / purple / turquoise. | |||||||||

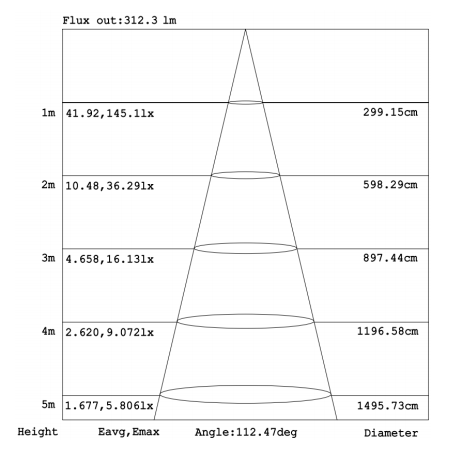

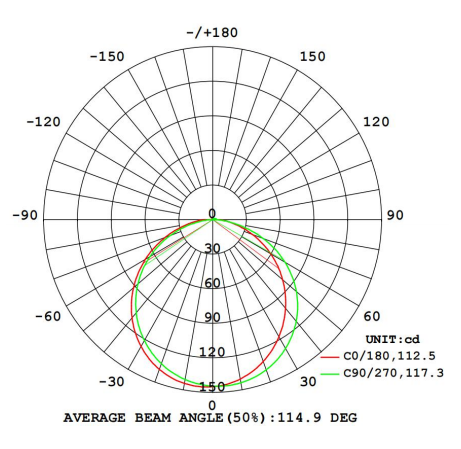

Illuminance Distribution
Download
