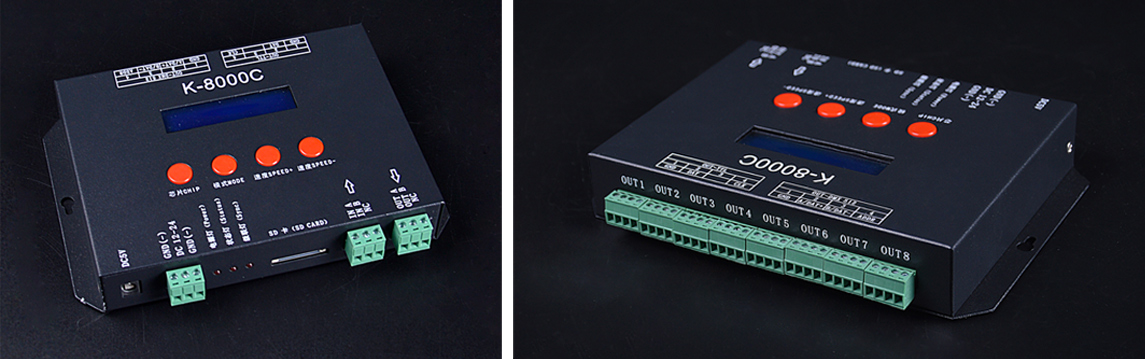

The Most Cost Effective SPI&DMX Compatible Controller

Aug. 01, 2022

Features of K-8000C system features:

1. K-8000C is both SPI and DMX singnal compatible

2. 32 to 65536 degree Gray Scale control; Process by Gamma correction processing.

3. Support various light source in point, line or plane, and specific shapes.

4. The controller has eight ports output, each port can support up to 512/1024 lights(DMX lights can support up to 512 pixels).

5. The play content stored in SD card, which can store up to 32 effect files. SD cared capacity supports 128MB-32GB.

6. The controller can be used individually, or cascade connected with multiple controllers in optical isolation mode, which is anti-interference an with good stability.  The cascade distance between two controllers can reach up to 150 meters, using 0.5M² pure copper power cord.

7. The controller support chip can lock the support IC in software, or not lock the support IC in the software, but select the support IC through the controller CHIP button. This scheme is more flexible and convenient.

8. For the DMX lighting, the controller comes with address writing function; In addition, using in conjuction with our 2016 LedEdit-K V3.26 or later edition can set the function of one-press address writing.

9. Support loading lamp with 4 channels (RGBW) pixels, or split into single channel point pixel.

10. Enhanced 485 TTL and 485 differential (DMX) signal output.

11. The controller comes with 22 testing effects.
