Technical Parameters
| Electrical | Input Voltage | 24V Constant Voltage (CV) | ||||||||
| Power Consumption | 7W/m | |||||||||
| Optical | LED Type & Brand | SMD 2835, Epistar | ||||||||
| CRI | >80, (R90, R95 customizable) | |||||||||

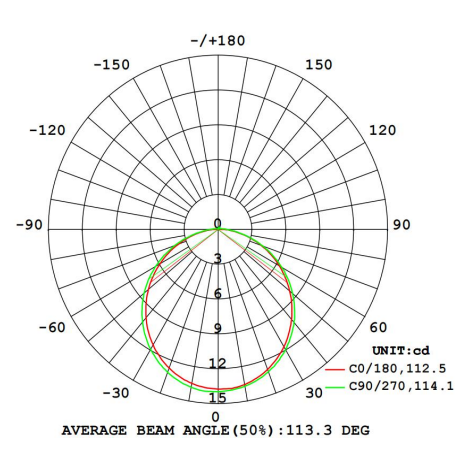

| Beam Angle | 120° (IES) | |||||||||

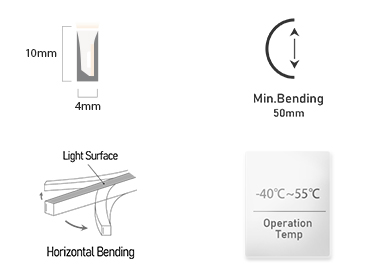

| Physical | Min. Cutting Length | 41.7mm | ||||||||
| Min. Bending Diameter | Φ50mm | |||||||||
| Temperature | Operation Temperature | -40℃~55℃ | ||||||||
| Max. Mounting Surface Temp. | 85℃ | |||||||||
| Durability | Warranty | 5 Years Warranty | ||||||||
| Max. IP Rating | IP67 | |||||||||
| Lumen Maintenance | 70,000 Hours L70 @ 25℃, 50,000 Hours L70 @ 50℃ | |||||||||
Models List
| Model No. | Voltage | Color | Power/m | LED Qty/m | Min. Cutting | Lumen/m | Max. Run Length /Single End | ||||
| SFS04-B-CV24-168-22K-R80-7W | 24V | 2200K |  | 7W | 168pcs | 41.7mm | 180lm±5% | 5m | |||
| SFS04-B-CV24-168-27K-R80-7W | 24V | 2700K |  | 7W | 168pcs | 41.7mm | 180lm±5% | 5m | |||
| SFS04-B-CV24-168-30K-R80-7W | 24V | 3000K |  | 7W | 168pcs | 41.7mm | 195lm±5% | 5m | |||
| SFS04-B-CV24-168-35K-R80-7W | 24V | 3500K |  | 7W | 168pcs | 41.7mm | 195lm±5% | 5m | |||
| SFS04-B-CV24-168-40K-R80-7W | 24V | 4000K |  | 7W | 168pcs | 41.7mm | 205lm±5% | 5m | |||
| SFS04-B-CV24-168-50K-R80-7W | 24V | 5000K |  | 7W | 168pcs | 41.7mm | 205lm±5% | 5m | |||
| SFS04-B-CV24-168-57K-R80-7W | 24V | 5700K |  | 7W | 168pcs | 41.7mm | 220lm±5% | 5m | |||
| SFS04-B-CV24-168-65K-R80-7W | 24V | 6500K |  | 7W | 168pcs | 41.7mm | 220lm±5% | 5m | |||
| SFS04-B-CV24-168-R-R80-7W | 24V | Red |  | 7W | 168pcs | 41.7mm | 82lm±5% | 5m | |||
| SFS04-B-CV24-168-G-R80-7W | 24V | Green |  | 7W | 168pcs | 41.7mm | 135lm±5% | 5m | |||
| SFS04-B-CV24-168-B-R80-7W | 24V | Blue |  | 7W | 168pcs | 41.7mm | 24lm±5% | 5m | |||

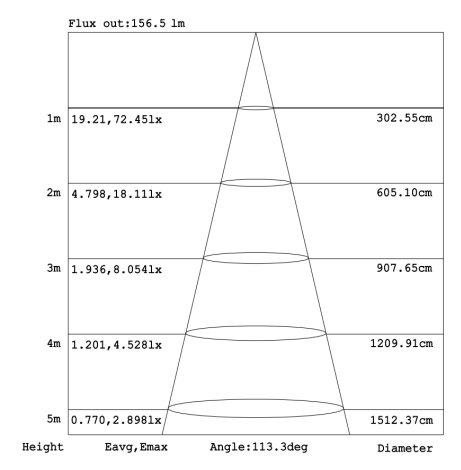

Illuminance Distribution
